Unsteady wet-steam flow through 2-D two-stage stator-rotor cascades in low pressure steam turbine(Ref.3,4, Click figure for animation!)
CFD technologies of turbomachine simulation have been developed in last
two-decades. Commercial codes such as Fluent, CFX, and FineTurbo can simulate
multi-stage stator-rotor cascade flows. However, those flows may be assumed
to be a perfect gas or an incompressible water flow. Recently we developed
2-D and 3-D computational codes for multi-stage stator-rotor turbine cascade
flows of moist-air and of wet-steam with nonequilibrium condensation. The
3-D code can apply to a complete multistage time-accurate calculation.
We call this code "Numerical Turbine". The Numerical Turbine
can calculate not only those flows in a steam turbine, but also flows in
a compressor of aircraft engines and industrial gas turbines considering
the condensation of moist air. Those codes are being customized for the
parallel and vector computers such the supercomputer SX-9 in Tohoku University
and PC-clusters.

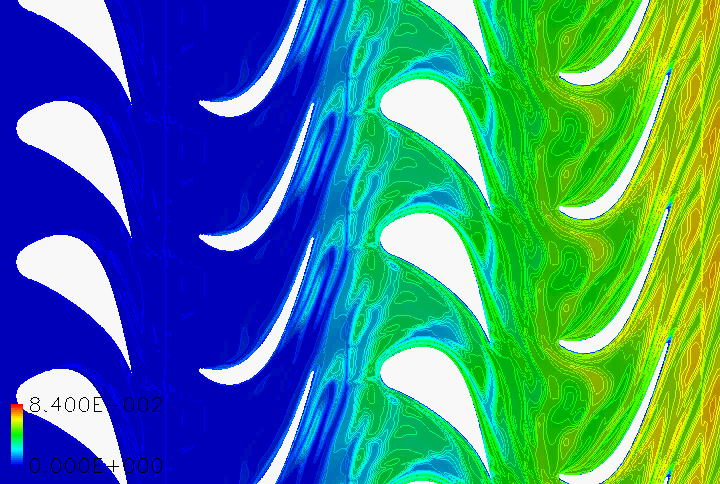

Unsteady wet-steam flow through 2-D two-stage stator-rotor cascades in
low pressure steam turbine(Ref.3,4, Click figure for animation!)

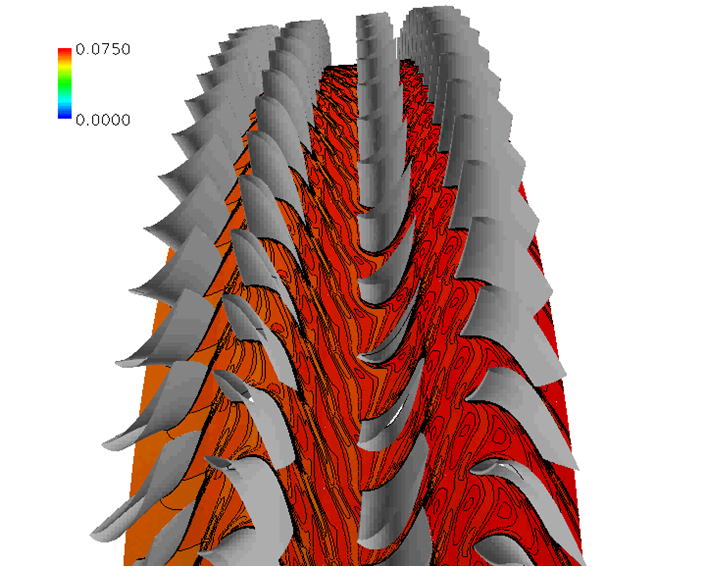

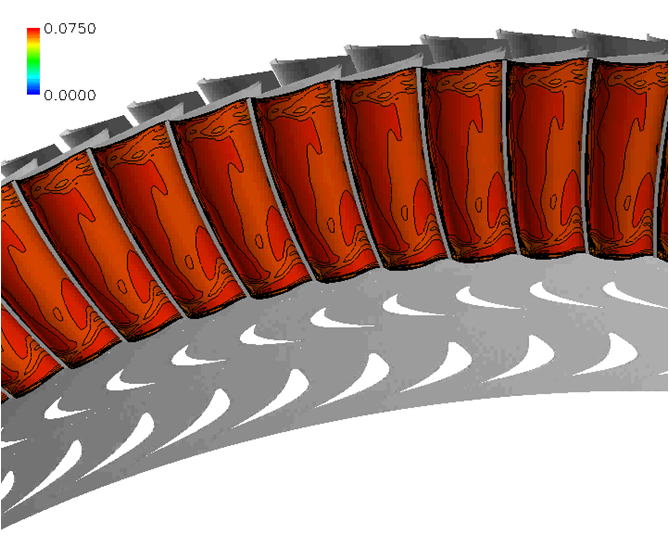

Unsteady 3-D wet-steam flow through two-stage stator-rotor blade rows in
low pressure steam turbine(Left:Mach number, Mid:wetness at mid-span, Right:
wetness at cross section of first-stage rotor, based on the results in
Ref.6, Click each figure for animation!)

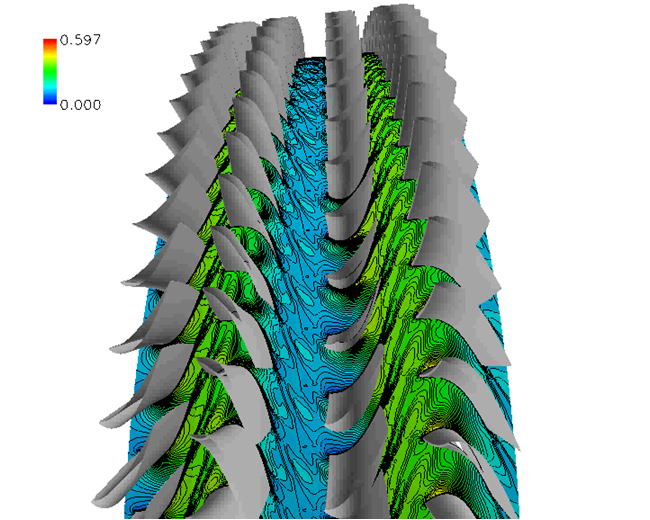

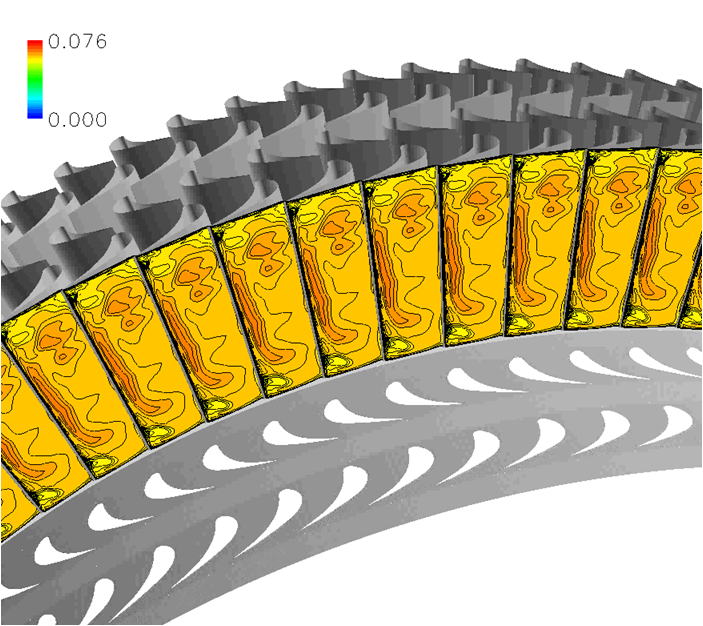

Unsteady 3-D wet-steam flow through three-stage stator-rotor blade rows
in low pressure steam turbine(Left:Mach number, Mid:wetness at mid-span,
Right: wetness at cross section of second-stage rotor, based on the results
in Ref.7, Click each figure for animation!)

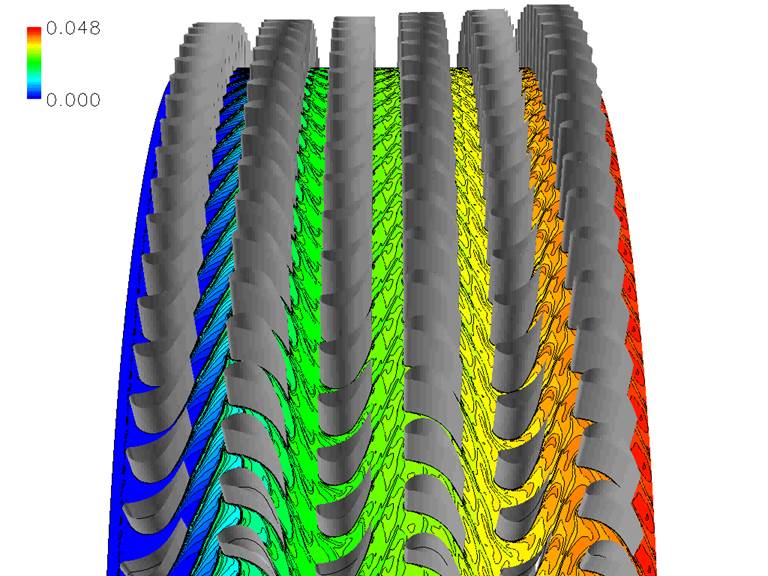

Unsteady 3-D wet-steam flow considering nonequilibrium condensation through
three-stage stator-rotor blade rows in low pressure steam turbine(Left:wetness
at mid-span, Right: wetness near shround of third-stage, based on the results
in Ref.8, Click each figure for animation!)

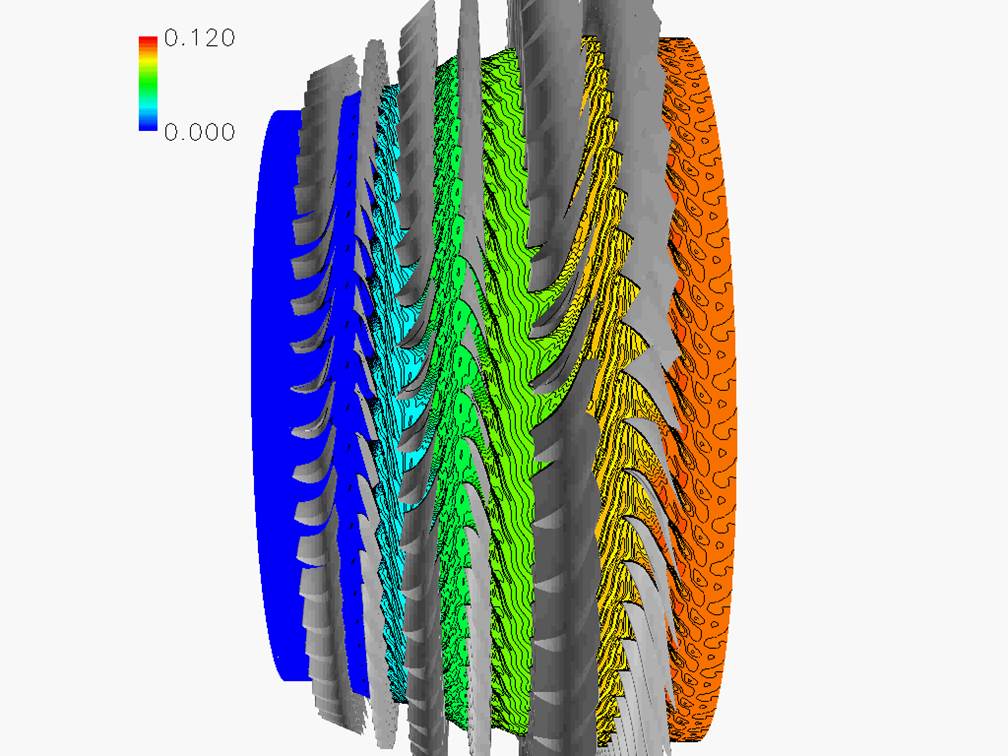

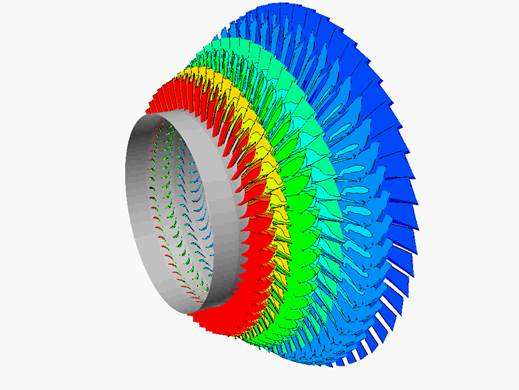

Unsteady 3-D wet-steam flow through three-stage stator-rotor long blade
rows in a low pressure real steam turbine(Left:static pressure on blades,
Right: wetness at mid-span, based on the results in Ref.10, Click each
figure for animation!)
