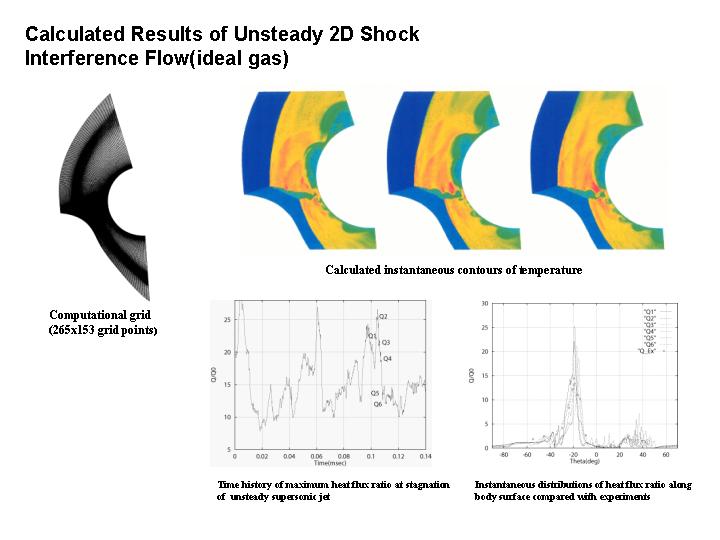

Calculated results(1,2)

Movie of Calculated Results (Quick Time)

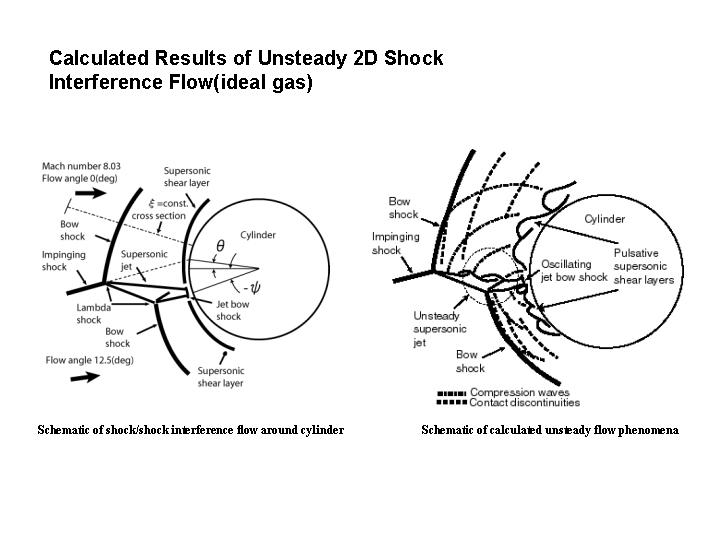

　Type IV shock/shock interference flow

　　　　Uniform Mach number　8.03

　　　　　　　　Instantaneous temperature contours TypeIV.mov

References

S. Yamamoto and S. Kano, Structure of Bow Shock and Compression Wave Interactions in Unsteady Hypersonic Shock/Shock Interference Flow, AIAA Paper 96-2152, 1996.

S. Yamamoto and S. Kano, An Efficient CFD Approach for Simulating Unsteady Hypersonic Shock-shock Interference Flows, Computers & Fluids, Vol.27, No.5/6, 1998, pp.571-580.
